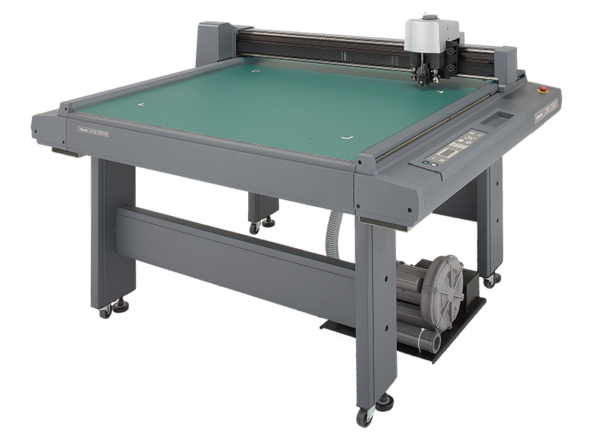

Description
- Three model sizes: 35.4” x 47.2”; 47.2” x 59”; 47.2” x 70.8”
- Reciprocating, tangential and eccentric cutting functions; creasing function
- Cut media up to 1” (25 mm) thick
- Able to perform different types of half-cutting or die cutting without changing tools
- Precise contour cutting with the patented Mimaki color photo sensor
- Ideal for print-and-cut solutions with sign graphics and industrial printers
- Suitable for packaging sample production
- FineCut9 software included
Specifications
| Effective Plotting Area | CF2-0912: 47.2″ x 35.4″ (1200 x 900 mm) CF2-1215: 59.1″ x 47.2″ (1500 x 1200 mm) CF2-1218: 70.9″ x 47.2″ (1800 x 1200 mm) |
| Maximum Media Width | CF2-0912: 354.3″ (900 mm) CF2-1215: 472.4″ (1200 mm) CF2-1218: 472.4″ (1200 mm) |
| Maximum media thickness | CF2-0912: T / TD: 1″ / RT / RC: .8″ (T / TD: 25 mm RT / RC: 20 mm) CF2-1215: T / TD: 1″ / RT / RC: .8″ (T / TD: 25 mm / RT / RC: 20 mm) CF2-1218: T / TD: 1″ / RT / RC: .8″ (T / TD: 25 mm / RT / RC: 20 mm) |
| Maximum Cut Speed | 19.7″ (50.0 mm) |
| Maximum Cut pressure (Metric grams) | Pen: 400g | Tangential: 1500g | High Pressure Tangential: 5000g | RC: 1500g |
| Cutter Types | Pen/swivel, Tangential, High-pressure Tangential, Reciprocating |
| Interface | RS-232C |
| Power supply | Single-phase (AC 100–120V / AC 220–240V±10%) 50/60Hz±1Hz” |
| Operational Environment | Temperature 40° – 104° F (20-30° C) Humidity: 35–75 % RH (Non condensing) |
| Dimensions (W × D × H) | CF2-0912: 69.3″ x 63.0″ x 43.3″ (176 x 160 x 110 cm) CF2-1215: 81.1″ x 74.8″ x 43.3″ (206 x 190 x 110 cm) CF2-1218: 92.9″ x 74.8″ x 43.3″ (236 x 190 x 110 cm) |
| Weight | CF2-0912: 308 lbs. (140 kg) CF2-1215: 364 lbs. (165 kg) CF2-1218: 397 lbs. (180 kg) |
