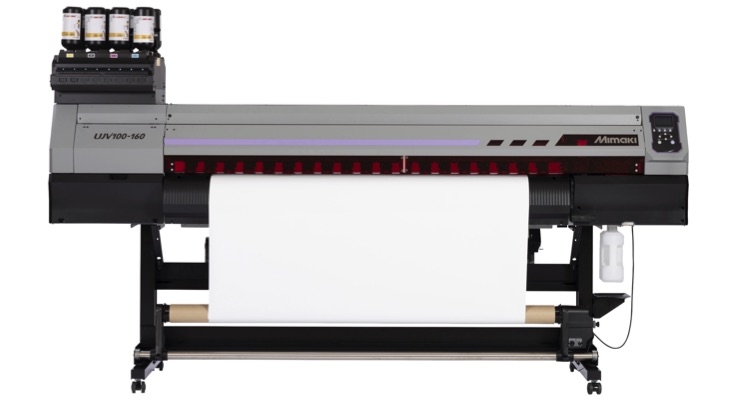

Mimaki UJV100-160

The UJV100-160 is a competitively priced UV-LED roll-based model with all the print productivity features of higher-end models. It features the Mimaki instant-dry UV-LED inks that adhere to a variety of media, including paper, PET film, fabric, vinyl and more, making post-printing handling and finishing effortless. This versatile printer can produce a variety of applications while keeping costs low.


  • 160 cm width, with print speeds up to 23m2/h
  • High media versatility with unparalleled scratch resistance
  • New Dot Adjustment System (DAS) automates dot position and feeding corrections, reducing manual intervention and workflow interruption
  • Eco-friendly, six color inkset in 1-liter bottles: C, M, Y, K, W, Cl
  • Instantly-cured prints for shorter turnarounds and additional cost savings
  • Produce a wide range of applications including posters, banners, backlits, soft signage, etc.


Printhead Two on-demand piezo heads, staggered layout
Print Resolutions 360 dpi, 720 dpi, 900 dpi, 1200 dpi
Print Speed (4 Color Mode) 23 m²/h (Draft), 18.6 m²/h (High Speed)
Maximum Print Area 63.4″ (1610.0 mm)
Maximum media width 63.8″ (1620 mm)
Maximum Media Thickness up to 1 mm
Maximum Media Weight up to 45 kg
Ink Type U.S. & Canada- LUS-170
Mexico, Central & South America- LUS-210: C, M, Y, K, W, CI (Clear ink: availability TBC)
Ink Package Size 1L bottle
Interface USB2.0 / Ethernet
Power Supply Single phase AC100 – 120 / 200 – 240V ±10%, 50/60Hz±Hz
Operational Environment Temperature 20° – 30°C
Humidity: 35 – 65 % RH (Non condensing)
Dimensions (W × D × H) 2775 x 700 x 1392 mm
Weight 167 kg
Options Ionizer / Level foot / Lift-up block
