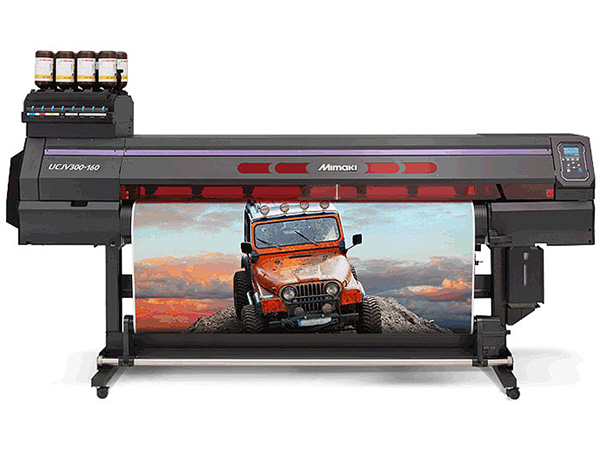

Mimaki UCJV300 Series

This revolutionary print-and-cut family offers in-line cutting capabilities and features multi-layer printing for transitional or double facing images. Graphics are instantly-cured, so you can efficiently create applications that will meet (and exceed) your customers’ needs.

Description

Specifications

Print head Two in-line on-demand piezo heads
Print Resolutions 300dpi, 600dpi, 900dpi, 1200dpi
Print Speed (4 Color Mode) UCJV300-75: up to 152.8 SqFt/Hr (14.2 m2/h)
UCJV300-107: up to 183 SqFt/Hr (17 m2/h)
UCJV300-130: up to 205.6 SqFt/Hr (19.1 m2/h)
UCJV300-160: up to 195.9 SqFt/Hr (25.8 m2/h)
Maximum Print Area UCJV300-75: 31.5″ (800 mm)
UCJV300-107: 42.9″ (1090 mm)
UCJV300-130: 53.6″ (1361 mm)
UCJV300-160: 63.4″ (1610 mm)
Maximum media width UCJV300-75: 31.9″ (810 mm)
UCJV300-107: 43.3″ (1100 mm)
UCJV300-130: 54″ (1371 mm)
UCJV300-160: 63.8″ (1620 mm)
Maximum Media Thickness up to 0.04″ (1 mm)
Maximum Media Weight 88.2 lbs. (40.0 kg)
Ink Type U.S. & Canada- LUS-170, LUS-200 | Mexico, Central & South America- LUS-175, LUS-200
Cut Speed 16.5″ sec (42.0 cm/sec)
Maximum Cut pressure (Metric grams) 450
Cutter Types Eccentric cutter, Blade for small character, Blade for reflective sheet, Blade for fluorescent sheet, Blade for PVC with low-pressure, Ball point pen
Interface Ethernet 1000BASE-T, USB2.0 Hi-speed
Power Supply Single phase (AC100-120 / 200-240V±10%, 50/60Hz±1Hz) x2
Power Consumption AC100V: 1.44kW or less x2 / AC200V: 1.92kW or less x2
Operational Environment Temperature 68° – 86° F (20-30° C)
Humidity: 35–65 % RH (Non condensing)
Dimensions (W × D × H) UCJV300-75: 81.496″ x 30.551″ x 58.071″ (207 x 77.6 x 147.5 cm)
UCJV300-107: 92.913″ x 30.551″ x 58.071″ (236 x 77.6 x 147.5 cm)
UCJV300-130: 103.543″ x 30.551″ x 85.071″ (263 x 77.6 x 216.1 cm)
UCJV300-160: 114.2″ x 30.6″ x 58.1″ (290.1 x 77.7 x 147.6 cm)
Weight UCJV300-75: 317.5 lbs. (144 kg)
UCJV300-107: 354.9 lbs. (161 kg)
UCJV300-130: 379.3 lbs. (172 kg)
UCJV300-160: 414.5 lbs. (188 kg)
Certifications VCCI Class A / FCC Class A / Compliant with UL 60950-1, ETL / CE Marking (EMC, Low voltage, Machinery directive) / RoHS / CB Report / REACH, ENERGY STAR® / RCM
UV Curable Ink (LUS170) Cyan Magenta Yellow Black Light Cyan Light Magenta White Clear
1L Bottle LUS17-C-BA LUS17-M-BA LUS17-Y-BA LUS17-K-BA LUS17-W-BA LUS17-CL-BA

UV Curable Ink (LUS175) Cyan Magenta Yellow Black Light Cyan Light Magenta White Clear
1L Bottle LUS175-C-BA LUS175-M-BA LUS175-Y-BA LUS175-K-BA LUS175-W-BA LUS175-CL-BA

UV Curable Ink (LUS200) Cyan Magenta Yellow Black Light Cyan Light Magenta White
1L Bottle LUS20-C-BA LUS20-M-BA LUS20-Y-BA LUS20-K-BA LUS20-W-BA
