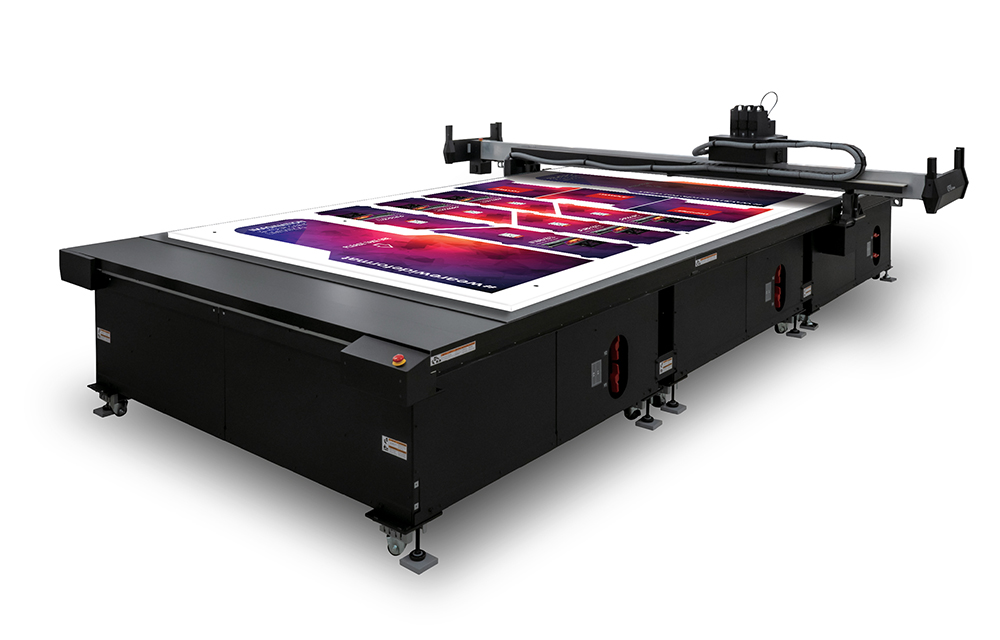

Mimaki CFX Series

The CFX Series cutting plotters are the latest, fastest, and most productive high-speed flatbed cutting plotters with routing support. With class leading movement speed of 1000mm/s, these cutting plotters achieve high levels of production while maintaining accuracy and precision. Equipped with the ability to carry four tools simultaneously and a high-pressure capability of 66lbs (30kg), the CFX Series ensures pristine cutting and creasing results on materials with max thickness of 2.3 inches (54mm). It features innovative technology like a camera-guided backside mode that enables accurate cutting and creasing from the backside. Whether you are working with oversized sheets or intricate designs, the CFX Series is a highly versatile production flatbed cutter to meet your needs.

Categories: , ,

Description

  • 1000 mm/s movement speed
  • Four simultaneous-carry tool stations
  • 11-66 lbs. (5-30 kg) pressure
  • Up to 2.31” (54 mm) material thickness
  • Surface tracking for V-cut accuracy
  • Camera guided backside cutting
  • Field-expandable tables 8.3’ Wide x 4.25’, 10.5’ and 16.5’ Long
  • Finecut9 base workflow
  • Ethernet & RS-232C communication

Specifications

Effective Plotting Area CFX-2513: 100″ x 51″ (2450 x 3000 mm)

CFX-2531: 100″ x 126″ (2450 x 3190 mm)

CFX-2550: 100″ x 200″ (2450 x 5080 mm)
Maximum Media Width CFX-2513: 101″ x 74.4″ (2570 x 1890 mm)

CFX-2531: 101″ x 149″ (2570 x 3780 mm)

CFX-2550: 101″ x 223″ (2570 x 5670 mm)
Maximum Media Thickness E35: 2.13″ (54 mm) E60: 2.13″ (54 mm), V45: 0.79″ (20 mm) VAS: 0.79″ (20 mm)

FBT: 0.39″ (10 mm) C16: 2.13″ (54 mm), C26: 2.13″ (54 mm) C60: 0.79″ (20 mm)
Maximum Media Weight 10.24 lb/ft2 (50 kg/m2 or less)
Maximum Movement Speed 3.3ft/s (1,000mm/s)
Maximum Acceleration 0.7 G
Maximum Cut pressure (Metric grams) 66 lbs (30kg)
Static Accuracy*1
Repeat accuracy: ±0.03 mm, Distance accuracy: ±0.1 mm,
Squareness: ±0.5 mm /1000 mm, Origin repeatability: ±0.15 mm





*1. Accuracy in pen writing with little or no load. Guaranteed temperature range is 68 to 77ºF (20 to 25ºC).
Cutter Types Pen/swivel, Tangential, High-pressure Tangential, Reciprocating and Routing
Interface RS-232C, Ethernet
Power supply 200 V to 240 V single phase 50/60 Hz 12VA or less
Power consumption 3,000 w
Operational Environment Operational Temperature 41° – 86° F
Operational Humidity: 35–75 % RH (Non condensing)

Accuracy guaranteed temperature: 68 to 77ºF (20 to 25ºC), Accuracy guaranteed relative humidity: 35 to 65% Rh Temperature gradient: ±50ºF/h (10ºC/h) or less
Dimensions (W × D × H) CFX-2513: 159.5″ x 84.6″ x 49.2″ (4050 × 2150×1250 mm)

CFX-2531: 159.5″ x 159.5″ x 49.2″ (4050 × 4050×1250 mm)

CFX-2550: 159.5″ x 234.3″ x 49.2″ (4050 × 5950×1250 mm)
Weight CFX-2513: 838 lbs. (380 kg)

CFX-2531: 1279 lbs. (580 kg)

CFX-2550: 1720 lbs. (780 kg)
Certifications VCCI Class, FCC Class A, CE marking, CB report (EN62368) UL62368-1, Machinery Directive RoHS, REACH
