Description
Easy Operation
Take the hassle out of print with this full front access device. A shaftless roll holder makes it easy to set up roll paper, while built-in auto-sheet feeder keeps your prints continuous without intervention in switching paper.
Hybrid support

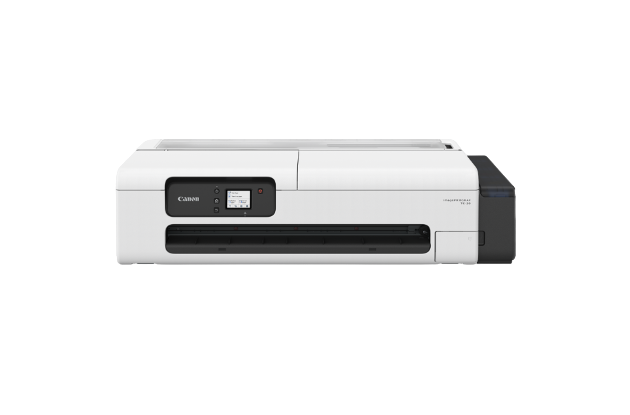

Switch easily between home and office printing. The imagePROGRAF TC-20 shares software with your office-based imagePROGRAF devices, making hybrid working even easier.
Green at heart
Meet your sustainability goals with easily recyclable plastic 70ml ink bottles to minimize replacement, reduced packaging.
4-colour
New black, cyan, magenta and yellow pigment ink
70ml plastic ink bottle
Easily recyclable bottles with low TCO
Built-in Auto sheet feeder
Continuous printing between roll paper and cut sheets
| Printer Technology | |
|---|---|
| Printer Type | 4 Colour 24″ |
| Print Technology | Canon Pigment ink 4 colours integrated type (4 chips per print head x 1 print head) |
| Print Resolution | 2,400 x 1,200 dpi |
| Number of Nozzles | Total : 4352 nozzles BK : 1280 nozzles C, M, Y : 1024 nozzles each |
| Line Accuracy | ±0.1% or less (User adjustments necessary. Printing environment and media must match those used for the adjustments.) |
| Nozzle Pitch | 1,200 dpi x 2 lines |
| Ink Capacity | Bundled Full Ink Set: 280ml (70mlx4 for BK, C, M, Y) Sales Ink: 70ml (BK, C, M, Y) |
| Ink Type | Pigment inks : 4 colour BK/C/M/Y |
| OS Compatibility | 32 Bit: Windows7, Windows 8.1, Windows 10 64 Bit: Windows 7, Windows 8.1, Windows 10, Windows 11, Windows Server 2008R2, 2012, 2012R2, 2016, 2019, 2022 Apple Macintosh: macOS 10.14.6～macOS 12,x |
| Printer Languages | SGRaster |
| Standard Interfaces | USB A Port: N/A USB B Port: Hi-Speed USB Ethernet: IEEE802.3u(100BASE-TX) / IEEE802.3(10BASE-T) Wireless LAN: IEEE802.11n/IEEE802.11g/IEEE802.11b *Please refer to user manual how to activate/deactivate the wireless LAN |
| Memory | |
| Standard Memory | 1GB (Expansion slot : No) |
| Hard Drive | N/A |
| Print Speed | |
| CAD Drawing (Plain paper, A1, B&W): | 0:33 (Standard) |
| CAD Drawing (Plain paper, A1, Color): | 1:03 (Standard) |
| Poster (Plain Paper, A1): | 1:10 (Fast) 2:08 (Standard) |
| Poster (Coated Paper, A1): | 3:10 (Fast) 6:05 (Standard) |
| Media Handling | |
| Media Feed and Output: | Roll Paper : One Roll, Front-loading, Front Output Cut Sheet : Auto sheet feeder |
| Media Width: | Roll paper : 297mm – 610mm Cut sheet: 210mm – 297mm |
| Media Thickness: | Roll/Cut : 0.08mm – 0.28mm |
| Minimum Printable Length: | Roll/Cut : 203.2mm |
| Maximum Printable Length: | Roll paper : 4m Cut sheet : 432mm |
| Maximum Media Roll Diameter: | 110mm |
| Media Core Size: | Internal diameter of roll core: 2″ |
| Margins Recommended Area: | Roll paper: Top: 5mm, Bottom: 5mm, Side: 5mm (some photo mode: Top: 30mm, Bottom: 30mm) Cut sheet: Top: 5mm, Bottom: 5mm, Side: 5mm |
| Margins Printable Area: | Roll paper: Top: 5mm, Bottom: 5mm, Side: 5mm (some photo mode: Top: 30mm, Bottom: 30mm) Cut sheet: Top: 5mm, Bottom: 5mm, Side: 5mm |
