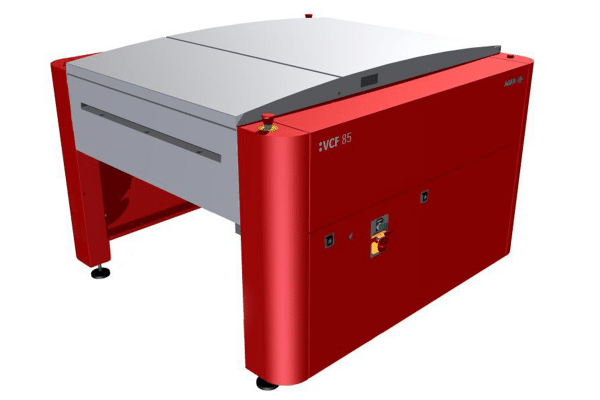

Agfa VCF85N Processor – Refurbished

VCF 85 N is a compact and affordable clean-out unit that works at a speed of 1.2 m per minute. It uses gum designed to handle N95-VCF violet chemistry-free plates.

Reduce your system cleaning time and eliminate classic processing chemicals. How? By using the affordable VCF 85 N. Your violet chemistry-free plates are cleaned out with more efficiency than ever before. Quick and clean: important for newspaper printers looking to streamline, simplify and reduce costs.

Chemistry-free operation increases the green credentials of any newspaper printer keen on minimizing its environmental impact.

Description

Key benefits

  • Small footprint
  • Compact design;
  • Minimal operation cost;
  • Easy to clean;
  • Easy to install;
  • State-of-the-art user interface;
  • Remote control.

Features

  • VCF 85 N processes your chemistry-free violet digital offset plates at a speed of 1.2 meters per minute.
  • The maximum width of the plates is 850 mm (33.5 inch).
  • Fully automated top up, based on square meter measurement
  • Automatic container alarm
  • Emergency stop
  • World-wide electrically configurable

Technical Specs

Plates
Plate type Chemistry-free photopolymer offset plates: N95-VCF, Azura V
Plate width, min.-max. 200-850 mm (7.9-33.5”)
Plate length, min. 275 mm (10.9”)
Plate thickness, min.-max. 0.15-0.30 mm (0.006-0.012”)
Platesetters Advantage N, Polaris
Performance
Plate speed 40-120 cm/min
Plate volume
Scrub roller speed 150 rpm
Mechanical Specifications
Temperatures
  • Preheat: 0-150 °C (122-302 °F)
  • Gum 1: 20-27 °C (68-81 °F)
  • Gum 2: room temperature
  • Dryer, Process: 35-55 °C (95-131 °F)
Tank volumes
  • Gum 1: 40 lit. (10.6 US gal.)
  • Gum 2: Open system (back to bottle)
Noise emission (max.) < 70 dB
Physical Specifications
Dimensions (w x l x h) 1430mm (56.3”) x 1500mm (59.0”) x 1000-1160mm (39.4-45.6”)
Weight crated
  • Crated: 530 kg (1168 lb)
  • Empty unit: 390 kg (860 lb)
  • Filled unit: 427 kg (941 lb)
Electrical Specifications
Europe 3-phase, 3W+N+PE, 400VAC/14Amp / 50/60 Hz
USA and Japan 3-phase, 3W+PE, 208-230VAC/23Amp / 50/60 Hz
Voltage tolerances (all) +/- 10%
Power consumption (EUR/USA/JAP)
  • Stand-by: 100 Watt-hour (342 BTU)
  • Maximum: 5500 Watt-hour (17160 BTU)
