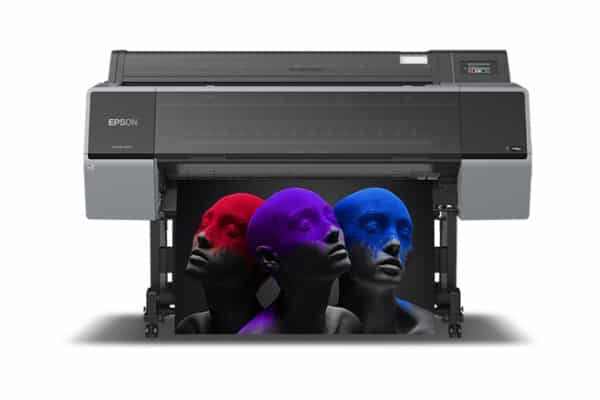

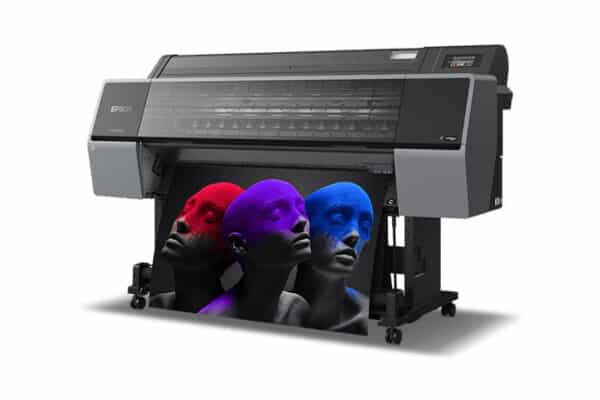

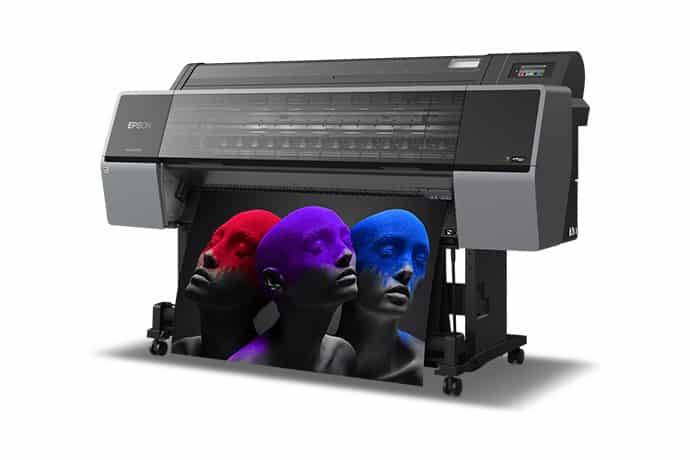

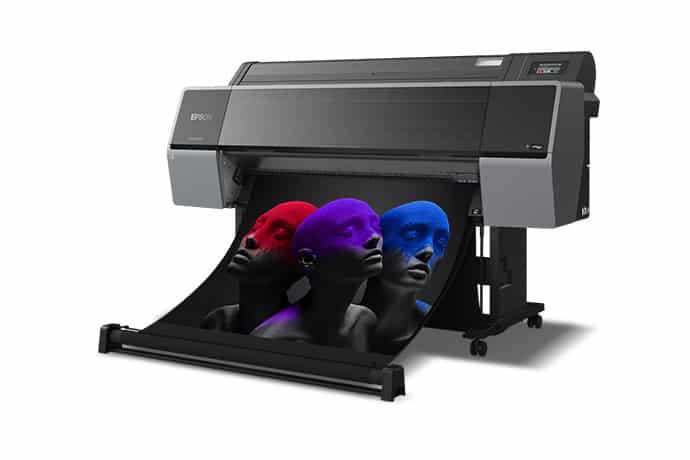

Epson SureColor P9570

From professional photography to proofing and graphic design, the SureColor P9570 was built from the ground-up to uniquely cater to the full spectrum of creative needs. Featuring all-new UltraChrome® PRO12 Ink, the SureColor P9570 captures every detail with unparalleled colour brilliance2 and accuracy. And, with a new 2.6″ PrecisionCore® printhead, you get unmatched image quality at speeds up to 2.4 times faster than our previous generation1.



  • Our most advanced wide-format printer yet — tackles photography, fine art, proofing and graphic design printing with unmatched image quality and performance
  • Powered by PrecisionCore — new 2.6″ printhead performs at speeds up to 2.4 times faster than our previous generations1
  • Extreme colour gamut — all-new UltraChrome PRO12 Ink with Violet produces astounding colour with up to 99 percent coverage of the PANTONE® FORMULA GUIDE solid-coated standard2
  • Realtime Photo and Matte Black ink switching — dedicated nozzles for both black ink types
  • Industry-leading print permanence — creates prints that last up to 200 years colour and 400 years black-and-white3
  • New customizable touchscreen — first-in-class to feature a customizable, 4.3″ colour touchscreen for easy navigation
  • Reliable printer design — redesigned industrial-level print engine for lasting durability and an interior LED light for convenient operation
  • Increased black density with Black Enhance Overcoat — improved Dmax for a wider contrast ratio with enhanced clarity and increased sharpness on glossy papers
  • Optional Epson SpectroProofer® — automates colour calibration and proof verification tasks for proofing applications with optional third-party RIP and workflow software
  • Easy workflow integration — compatible with most third-party RIP workflow software


Printing Technology:PrecisionCore MicroTFP 12-channel, drop-on-demand printheadMaximum Print Resolution:2400 x 1200 dpiPrint Speed:23.4″ x 33.1″ prints1

  • Normal (BEO: off) 2:02
  • Normal (BEO: on) 4:04

40.6″ x 57.3″ prints1

  • Draft (BEO: off) 3:39
  • Normal (BEO: off) 4:45

(BEO=Black Enhance Overcoat)Minimum Ink Droplet Size:Smallest droplet size: 3.5 picoliters; Variable Droplet Technology can produce up to three different sizes per lineNozzle Configuration:Colour and monochrome heads; 9600 nozzles (800 nozzles x 12)

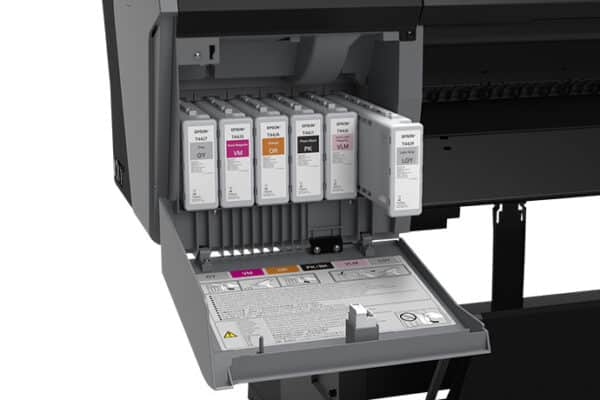

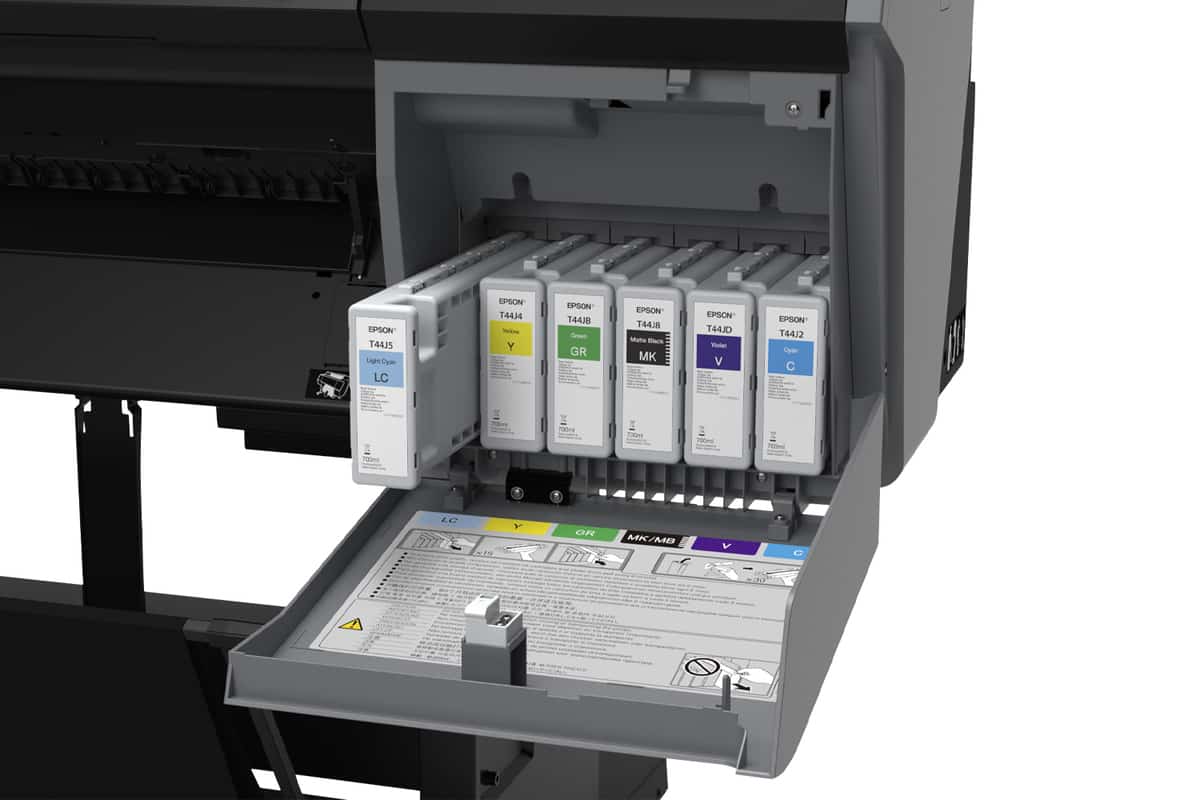

Ink Type:UltraChrome PRO12 pigment ink; 12-ink,Ink Palette:Cyan, Light Cyan, Vivid Magenta, Vivid Light Magenta, Yellow, Gray, Light Gray, Orange, Green, Photo Black, Matte Black and VioletInk Configuration:UltraChrome PRO12 Ink (700 mL)

  • Photo Black T44H120
  • Cyan T44H220
  • Vivid Magenta T44H320
  • Yellow T44H420
  • Light Cyan T44H520
  • Vivid Light Magenta T44H620
  • Gray T44H720
  • Matte Black T44H820
  • Light Gray T44H920
  • Orange T44HA20
  • Green T44HB20
  • Violet T44HD20

UltraChrome PRO12 Ink (350 mL)

  • Photo Black T44P120
  • Cyan T44P220
  • Vivid Magenta T44P320
  • Yellow T44P420
  • Light Cyan T44P520
  • Vivid Light Magenta T44P620
  • Gray T44P720
  • Matte Black T44P820
  • Light Gray T44P920
  • Orange T44PA20
  • Green T44PB20
  • Violet T44PD20

UltraChrome PRO12 Ink (150 mL)

  • Photo Black T44W120
  • Cyan T44W220
  • Vivid Magenta T44W320
  • Yellow T44W420
  • Light Cyan T44W520
  • Vivid Light Magenta T44W620
  • Gray T44W720
  • Matte Black T44W820
  • Light Gray T44W920
  • Orange T44WA20
  • Green T44WB20
  • Violet T44WD20

Fade Resistance / Print Longevity:Colour: up to 200 years; Black-and-white: up to 400 years3


Operating Systems:Apple® OS X® 10.6.8 or later
Windows® 10, 8.1, 7 (32-bit, 64-bit)Temperature:Operating: 50 ˚ to 95 ˚F (10 ˚ to 35 ˚C)
Operating (recommended): 65 ˚ to 75 ˚F (18 ˚ to 24 ˚C)
Storage: -4 ˚ to 104 ˚F (-20 ˚ to 40 ˚C)Humidity:Operating: 20 – 80% (no condensation)
Operating (recommended): 45 – 60% (no condensation)
Storage: 5 – 85% (no condensation)Sound Level:Less than 49.5 dB(A) according to ISO 7779Dimensions:Basket Closed: 75.1″ x 26.3″ x 48″ (1909 mm x 667 mm x 1218 mm)Weight:339 lb (153.8 kg)Eco Features:ENERGY STAR® qualified
RoHS compliant
Recyclable product8
Epson America, Inc. is a SmartWay® Transport Partner9Safety Approvals:Safety standards: UL62368-1, CAN/CSA C22.2 No.62368-1 EMC FCC part 15 subpart B class B, CAN/CSA-CEI/IEC CISPR22 class B, AS/NZS CISPR 32 class BCountry of Origin:ChinaWarranty:Standard 1-year usually next-business-day on-site repair with toll-free phone support Monday through Friday
