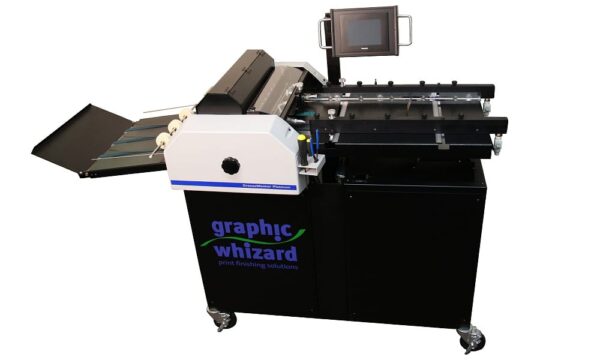

Graphic Whizard CreaseMaster Platinum Pneumatic Creaser

The Graphic Whizard Creasemaster goes Platinum. The most recent addition to the Creasemaster line is an 8,000 sheets per hour creaser able to satisfy the most demanding requests for creasing. Shops investing in high-end digital printers want to ensure that the image remains impressive for their customers. Digital touchscreen controls guarantee that the Creasemaster Platinum is user friendly and easy to operate. Features such as self-centering air feed, batch counting, ability to shift crease position on-the-fly, programmable job memory using presets, last job recall and numerous other attributes ensure superior performance and phenomenal value.


Description

IMPACT CREASER FEATURES

Electrical: 115V/60Hz/20A or 230V/50Hz/20A
Maximum Speed (impact creasing): 8000 8.5 x 11″ sheets per hour *landscape 8.5″x 11″, 1 impact crease, job performance will vary dependent upon job specifications
Maximum Speed (rotary perf/score): 8600 8.5 x 11″ sheets per hour *landscape 8.5″x 11″, continuous rotary score/perf, job performance will vary dependent upon job specifications
Maximum stock size: 18″W x 25.5″L (45.7cm x 57cm)
Minimum stock size: 3.5″W x 5″L (8.9 cm x 12.7 cm)
Stock weight: 12lb. – 18 point (45- 385 gsm)
Dimensions: Length: 60″ (1.52m)
Width: 27″ (0.69m)
Height: 46″ (1.17m)
Weight: 250 lbs. (114 kg)
Perforation options: 2,4,6,8,12,16 teeth per inch (TPI), 42, 50 and 72 Microperf TPI
Rotary score options: Wide (standard) or narrow
Creasing Die: Wide (standard) or narrow

ADDITIONAL FEATURES:

Impact creasing significantly reduces cracking of digitally-printed substrates during the finishing process
Inverted and regular impact creasing in the same pass!
Up to 10 impact creases per sheet
Up to 20 jobs can be stored into memory
Easy-to-use programming. Set up in minutes!
Rotary perforations (at the entrance of the machine for accuracy; no tail whip) are anvil style and produce a “burr-free” finish. Microperfs are also available



Product Brochure
